Clad material can be improved weakness of AL & CU while ensuring the Electrical conductivity, protection heat, cost saveing, light weight.
Application | TYPE | Components and Materials | SIZE (mm) | ||
---|---|---|---|---|---|
Thickness | Width | ||||

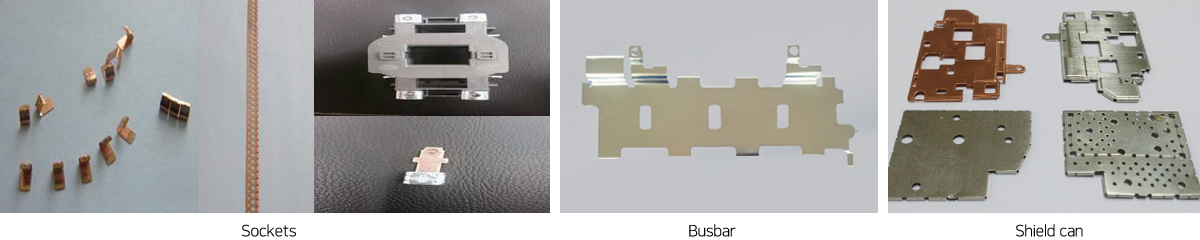

Busbar | Cu/Al/Cu | Clad material | C1020, C1100 ETC. | 0.6~6.0 | ≤500 |
Base Metal | Al1000 | ||||
Clad Material | C1020, C1100 ETC. | ||||
Electric Contact Connector | Cu/Al | Clad material | Al 1050, 3003, 5052 | 0.5~1.0 | ≤500 |
Base Metal | Al1000 | ||||
Cu/STS/Cu | Clad material | C1020, C1100, C7521 ETC. | 0.05~1.5 | ≤500 | |
Base Metal | STS304/409L ETC. | ||||
Clad material | C1020, C1100, C7521 ETC. | ||||
Cu/Mild/Cu | Clad material | Cu C1100 | 0.3~1.5 | ≤580 | |
Base Metal | SPCC | ||||
Clad material | Cu C1100 |
Clad parts applicable to the consumer electronics sector are those that can be applied to internal and external products and are used as materials for household appliances based on cost reduction, light weight, durability, etc.
Application | TYPE | Components and Materials | SIZE (mm) | ||
---|---|---|---|---|---|
Thickness | Width | ||||

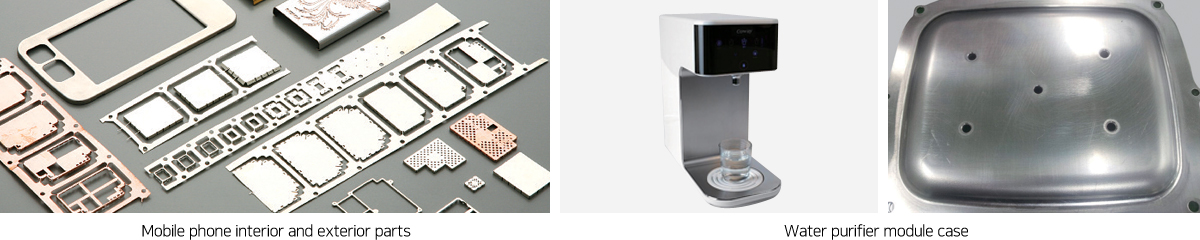

Mobile Phone | Cu/Al/Cu | Clad material | Al 1050, 3003, 5052 ETC. | 0.4~8.0 | ≤500 |
Base Metal | STS304 ETC. | ||||
Ti/Al | Clad material | Al 1050, 3003, 5052 ETC. | 0.4~3.0 | ≤500 | |
Clad material | Titanium | ||||
Cu/STS | Clad material | C1020, C1100, ETC. | 0.2~1.2 | ≤500 | |
Clad material | STS304 ETC. | ||||
Water purifier module case | STS/Al | Clad material | Al 1050 | 2.0~4.0 | ≤1,200 |
Base Metal | STS 304 | ||||

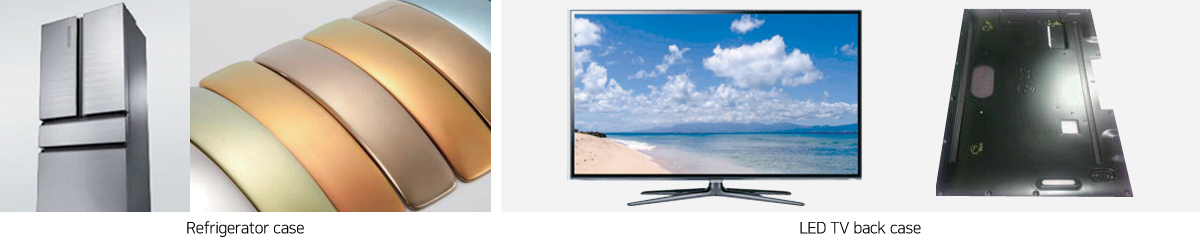

Refrigerator case | Titanium/Al | Clad material | Titanium Grade 1 | 0.4~1.2 | ≤1,200 |
Base Metal | Al 1050 | ||||
LED TV back case | STS/Al/STS | Clad material | STS 430 | 1.0~2.5 | ≤1,200 |
Base Metal | Al 1050 | ||||
Clad material | STS 430 |
