Thick plate CLAD

Thick plate CLAD

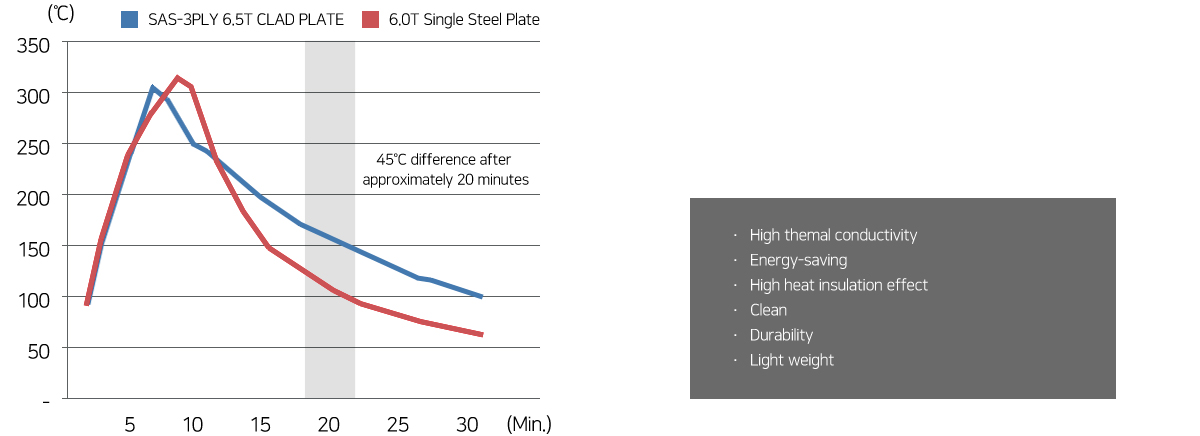

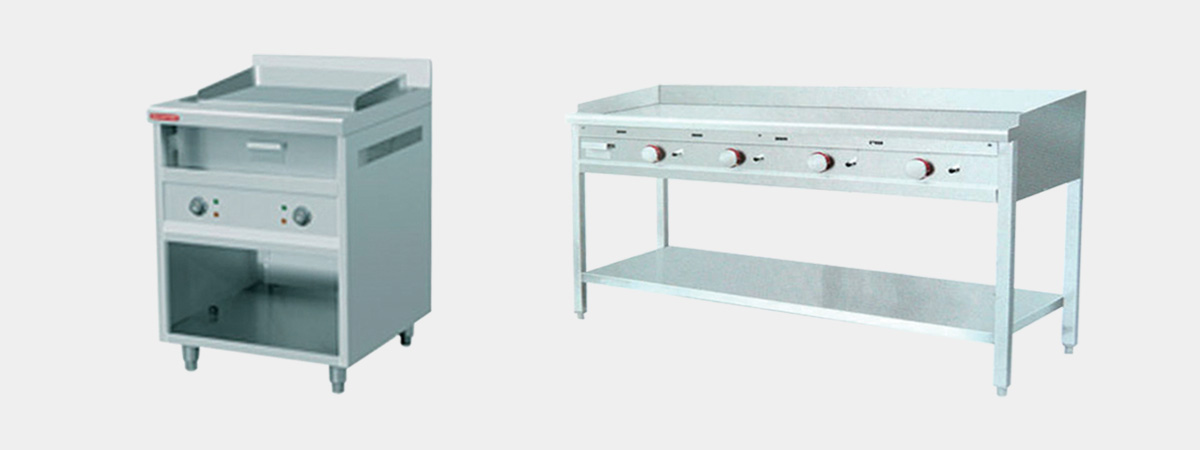

5.0 ~ 8.0T 3ply thick plate cladding was developed to replace ordinary carbon steel or stainless steel plate for griddle. The middle AL layer increases the thermal conductivity to save energy, burns, and improves hygiene by using STS on the outside.    ex3PLY for Griddle : Suitable for kitchens and restaurants of various sizes (hotels, restaurants, schools, etc.) )




Normal steel plate uses 10 ~ 20T carbon steel, but SAS 3PLY 5 ~ 8T can be replaced with much better efficiency than carbon steel, and weight reduction effect is possible.
Also, clad metal for griddle is more economic than single carbon steel.






Product Details

Application TYPE Components and Materials SIZE (mm)
Thickness Width
Griddle STS/Al/STS Clad material STS304/439 ETC 5.0~8.0 ≤1,219
Base Metal Al1050/3003
Clad material STS304/439 ETC
